DEP Pump Control Panel

DEP Pump Control Panel

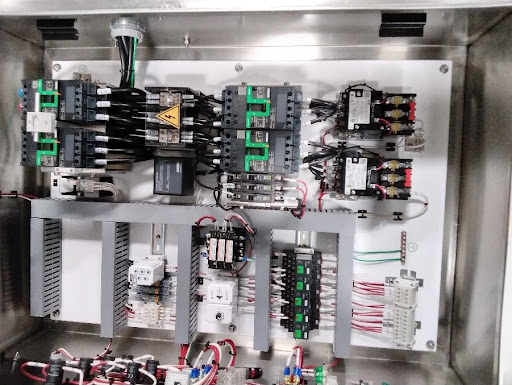

Image of DEP Pump Control by Keltour



DEP control panels are typically designed to control and monitor duplex pump stations with two submersible pumps. They include the circuit breaker for each pump, a high-water alarm, and fuses for the alarm circuit. They include an automatic alternating relay which alternates between which pump runs the cycle.

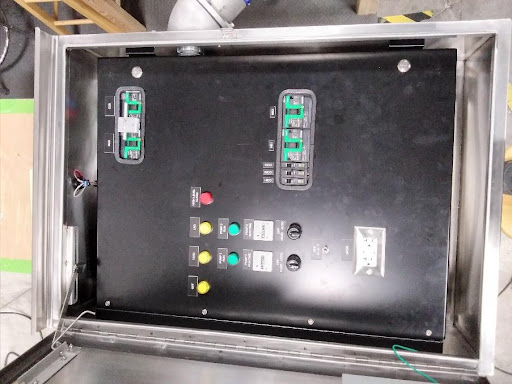

Image of DEP Pump Control center by Keltour

Typical control components for a DEP panel include:

  • Inner dead front door for the operator controls
    • Run pilot lights
    • Seal fails lights
    • High level light
    • Hand-Off-Auto switches
    • Time meters
    • GFCI Protected service receptacle
    • Service cutouts for breaker access
  • Generator receptacle
  • Lightning/ Surge arrestor
  • Interlocked Main and Emergency breakers
  • Undervoltage/ Phase monitor relay
  • NEMA starter or IEC NEMA rated contactor with overload
  • Alternating relay
  • Alarm horn and beacon with silence button

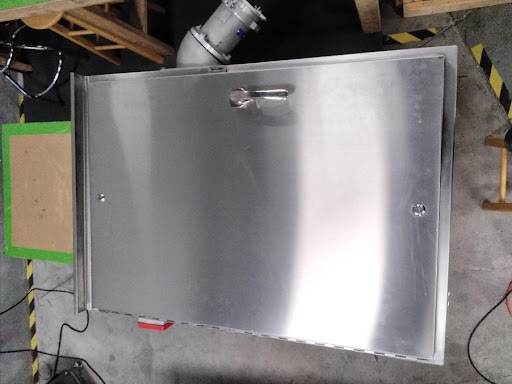

Image of the outside of an DEP Pump Control

Features & Specs for Fountain Pump Panels.



  • Enclosures can be 304 or 316 Stainless steel, Mild Steel (Coated), Galvanized Steel, Aluminum, Fiberglass, or plastic

  • Insulated Enclosures available on customer request

  • Enclosures can be custom painted, or powder coated

  • Company logos and service information labels can be added to any enclosure

  • NEMA Type 1, 3R, 4, 4X, 12, and 13, per customer requirements

Certifications and Testing

Keltour Is a CSA, UL, CE Certified shop, and we offer other certification as well. For a complete list visit LEARN MORE
