Protection and Control Panels
Thousands of Systems installed around the Globe.
Types of Protection and Control Panels We Offer
Transmission Line Protection Panels
Keltour panels for Transmission line feeder panels are designed and built to detect and protect transmission lines from faults and monitor these events. Keltour has utilized these common relays GE L90, Ge L60,GE D90,GE D60,Schweitzer SEL21,SEL411L,SEL401L,SEL311C, and more.
Types of Transmission Control
- Line differential protection
- Distance protection
- Directional overcurrent protection
- Auto reclose & synchronizing check scheme
- Breaker failure protection
Keltour Transmission line protection panels typically have A & B smart relays with basic to advanced settings depending on the level of protection required. Keltour has implemented thousands of these systems across North America and beyond. Keltour has built Protection Panels and E-House solutions for Solar farms, Wind farms and Traditional Grid Protection for Utilities.Call us today for engineering or build to print quotations. For engineering requirements on system design and more please see Keltour Service options below.
Generator protection Panel
Generator protection panels are designed and built with Specific relays based on the clients application and requirements , these relays get integrated into a Panel. Keltour has experience with Generator Panels for use in hydroelectric, coal, gas, geothermal, wind, biofuel, solar, and other energy sources.
Types of Generator Protection
- Stator Ground Protection Relay
- Distributed Generator Interconnection Relay
- Field Ground Module
Keltour has utilized the following relays: Schweitzer SEL400G, SEL735, SEL2414, SEL2488, SEL3555, GET60, GET35, GE845 and more. Generator protection panels help avoid expensive equipment damage while maintaining system performance and avoid expensive equipment failures. Call us today for engineering or build to print quotations. For engineering requirements on system design and more please see Keltour Service options below.

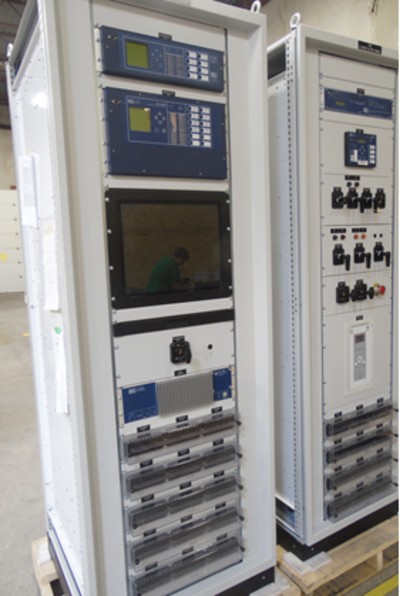

Scada Panels
Keltour Scada Panels/ RTAC Panels are designed and built to provide monitoring, control and automation for all critical applications.These Scada panels are designed to insure our client can remotely monitor through a web interface safely and securely.
SCADA System Functions
- Supervisory control
- Data scanning
- Monitoring
- Alarms
- Historic data
- Reporting
- Trends
Keltour has experience working with SEL3355, GE D20 and more. Call us today for engineering or build to print quotations. For engineering requirements on system design and more please see Keltour Service options below.
RTU Panels
Keltour RTU Panels allows customers to monitor field digital and analog parameters and transmits data to the Central Monitoring Station. Keltour RTU Panels will contain a PLC program such as Schweitzer SEL2240 , SEL2440 , SEL3555 , SEL3560,SEL 3530/3530-4, GE D25 and more. It uses these RTUs to connect data input streams to data output streams while defining communication protocols, and troubleshoot installation problems.Call us today for engineering or build to print quotations. For engineering requirements on system design and more please see Keltour Service options below.
BUS Protection Panels
Keltour BUS protection panels are designed and built to detect faults and, tripping currents on BUS lines, these specialized relays monitor high speed operation of the bus bar protection to limit damage.BUS Protection Panels are designed/built with security in mind. BUS Protection settings need to be extremely accurate, tripping incorrectly could create large outages and jeopardize power system stability.
Types of BUS protection
- Busbar differential protection
- Breaker failure protection
Keltour has utilized these relays GEB30,GEB90 and Micom Agile for Schweitzer BUS protection relays SEL451, SEL751, SEL351, SEL501, SEL551 and More.Call us today for engineering or build to print quotations. For engineering requirements on system design and more please see Keltour Service options below.
Transformer Protection Panels
Keltour transformer protection panels are designed and built to detect and protect transformers line faults and monitor these events, Transformer panels smart monitoring relays extend your transformer life while optimize capital expenditure and improving reliability.Keltour has utilized these common relays GET60, GET35, GE845, GE345 , Schweitzer SEL487E, SEL787, SEL387(E)(A), SEL587(Z), and more.
Types of Transmission Protection
- Differential protection
- REF protection (Residual Earth Fault)
- SEF protection (Sensitive Earth Fault)
- Overcurrent protection
- Breaker failure protection
Keltour transformer protection panels have smart relays with basic to advanced settings depending on the level of protection required. Keltour has implemented thousands of these systems across North America and beyond. Keltour has built Protection Panels and Ehouse solutions for Solar farms, Wind farms and traditional grid Protection for utilities. Call us today for engineering or build to print quotations. For engineering requirements on system design and more please see Keltour Service options below.
Feeder-Protection Panels
Keltour Feeder protection panels are designed and built for Industrial and utility feeder protection applications. Keltour Feeder protection Panels are built for protection of overhead lines and cables, this is the most commonly used type of protection. Keltour Feeder protection panels ensure that the power grid continues to supply energy where it is needed while monitoring for faults and identifying where they are with event analysis.
Types of Feeder Protection
- Primary protection for medium and high voltage utility and industrial overhead or cable feeder applications
- Protection of small and medium size distribution transformers
- Back-up protection of various HV applications
- Capacitor bank protection
- Cold Load Pickup, multi-shot recloser and multiple setting groups
Keltour has experience working with GE850 Recloser,GEF650,GE350,GEF60, Schweitzer Feeder protection relays SEL851,SEL551(C), SEL501,SEL352 and more. Call us today for engineering or build to print quotations. For engineering requirements on system design and more please see Keltour Service options below.

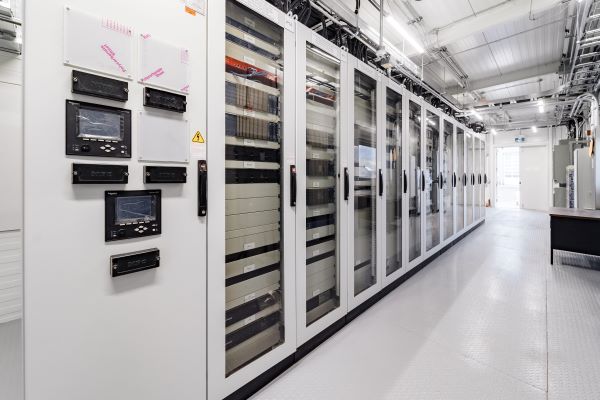

Metering Panels
Keltour Metering Panels are an essential component of any industrial/utility application where monitoring and/or control of equipment is taking place. These instruments display and monitor signal’s driven from analog or digital feeds and register them as measurable values. Modern panel meters have advanced capabilities such as alarms, transferring data via different mediums etc.
Types of Utility Metering
- Power Quality metering
- Revenue metering
Keltour has experience working with Energy and power quality metering for utility networks. Keltour uses Schneider ION 7650,ION 7550 and Schweitzer SEL735 and more. Call us today for engineering or build to print quotations. For engineering requirements on system design and more please see Keltour Service options below.
Keltour Offerings & Specifications (For Protection and Control Panels)
- Protection & Control Panel design ( From a single line diagram)
- Protection & Control Panel builds
- FAT (Functional Acceptance Testing)
- Internal Wiring/ Continuity testing (Point- to -Point verification)
- Hi-Pot Testing
- Panel energization
- Secondary injection during testing.
- Digital Input/output testing
- Analog current/ Voltage check
- Downloading Setting files within the Relay
- Certifications available CSA, UL and ESA inspection and more
- CWDs and Panel Layouts.
- Panel Integrations with a Ehouse
Custom Enclosures
- Stainless Steel Enclosures
- Mild Steel Enclosures
- Galvanized Enclosures
- Aluminium Enclosures
- Fibreglass enclosures
- Plastic enclosures
- Insulated Enclosures
- Custom painted enclosures
NEMA Certifications
- Type 1
- Type 3
- Type 3R
- Type 4X
- Type 13
- Type 4
- Type 12
- Division 1 and Zone 1 hazardous areas
Certifications and Testing
Keltour Is a CSA, UL, CE Certified shop and we offer other certification as well. For a complete list visit LEARN MORE
What is a Protection & Control Panel?
Protection & Control Panel panels generally have: Relays, selector switches and test links/MCBs on the front. Power supplies, auxiliary relays and dropping resistors mounted internally. Terminal rails where all the externally connected wiring is wired out. Protection and control Panels are utilized to monitor and control Utility and industrial power applications.
Protection and Control Panels
Learn more about protection and control panels from Keltour by reading through our most frequently asked questions for more guidance.
FAQs
Protection & Control Panel panels are designed to monitor and protect electrical systems with the purpose of ensuring the system can be controlled and the critical infrastructure is protected from damage. Protection and control panels are mainly utilized to monitor and control Utility and industrial power systems.
Most common Protection panels are:
- Generator Protection
- Transformer Protection
- Line Protection
- Bus Protection
- Feeder Protection
- Motor Protection
Protection and control panels generally have: IED (Intelligent Electronic Devices), selector switches, meters, current test links and miniature circuit breakers or fuse holders on the front. Power supplies, auxiliary relays and terminal blocks mounted internally. Terminal rails allow wiring from the devices & field to be wired to the panel.
An electrical control panel is typically a metal enclosure containing the necessary electrical components needed to control and monitor specific electrical and/or mechanical processes. Each electrical component inside a control panel has a specific purpose in the scheme needed to control or protect the different aspects of a production line or monitoring process.
Control panels are comprised of:
- Enclosures
- Fusing & Protection
- Power and Energy Monitoring and Control
- Power Distribution Systems
- Circuit and Load Protection
- Thermal Management
- Motion and Drives
- Safety systems
- Programmers, timers, and variable frequency drives
- Power Supplies and Transformers
- Power factor correction, surge protection and uninterruptible power supplies
- Relays and contactors
Control Panel Protection is a general term and has multiple meanings.
Exterior Panel Protection – Panels require ratings based on the environment they are being installed in, the North American standard is called (NEMA), these Nema ratings indicate the level of protection the panel has based on the environment it is in.
Electrical Protection (certification standards) – Electrical panels need to be fabricated and certified to a level of safety, Safety standards are dictated by numerous governing authorities, such as by the local jurisdiction such as ESA,NEC, CSA,UL and more. Keltour tests and designs all products to a minimum of CSA/UL certification.
Full Certifications we offer.
- CSA C22.2 No. 14
- UL 508A
- CE, EU Directives (EMC, Low Voltage, Machinery, and ATEX directives)
- Intrinsically Safe certification
- Unit Substation Certification
- ESA (Electrical Safety Authority)
- SPE1000National Electric Code (NEC)
- Class I Div. 1 (Explosion Proof)
- ATEX 2G
NEMA Panel Protection refers to the materials protecting the exterior of the electrical enclosure.A proper design protects the control panel against severe or hazardous environments such as water, heat, fire, explosions, chemicals or other elements that can cause damage.
Typical materials & ratings used for panel ratings.
- Stainless Steel Enclosures
- Mild Steel Enclosures
- Galvanized Enclosures
- Aluminium Enclosures
- Fibreglass enclosures
- Plastic enclosures
- Insulated Enclosures
- Custom painted enclosures
- NEMA certifications
- Type 1
- Type 3
- Type 3R
- Type 4X
- Type 13
- Type 4
- Type 12
- Division 1 and Zone 1 hazardous areas
Industries That Benefit From Our Control Panels
Industries that benefit from Protection and Control Panels are: Wind / Solar / Oil/Gas / Nuclear / Mining / Industrial / Hydro / Rental / Private Utilities / Pharmaceutical
